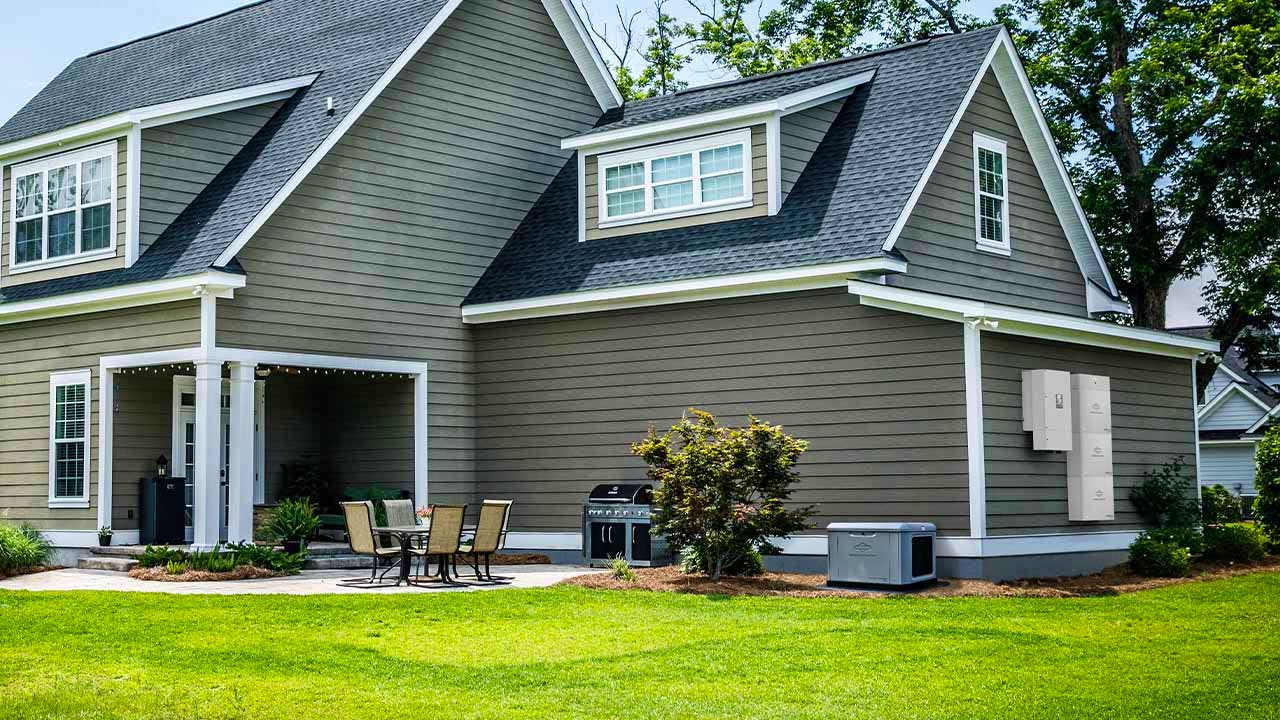

Powering Through: A Contractor's Guide to Integrating Batteries and Generators

For electrical contractors, the landscape of power solutions is rapidly evolving. While traditional reliance on the grid and backup generators remains, the integration of battery energy storage systems (BESS) is becoming increasingly crucial. This article will guide electrical contractors through the key considerations and best practices for seamlessly integrating batteries and generators, offering enhanced resilience, efficiency, and new service opportunities for their clients.

Understanding the Synergistic Relationship

Batteries and generators are not mutually exclusive; rather, they are complementary technologies that, when integrated effectively, create a more robust and versatile power infrastructure.

Generators: Provide a reliable, albeit often fuel-dependent, source of power for extended outages or when large loads need to be met. They excel at handling high power demands for longer durations and can provide additional battery charging when needed, while reducing fuel costs.

Batteries: Offer immediate backup power during grid outages, bridging the gap until a generator can start. They can also provide peak shaving capabilities, reducing energy costs, and enable the use of renewable energy sources like solar.

The synergy lies in leveraging the strengths of each technology while mitigating their weaknesses. Batteries handle short-term outages and optimize energy consumption, while generators provide long-term resilience when needed to both loads and for battery charging.

Key Considerations for Integration

Successfully integrating batteries and generators requires careful planning and consideration of several factors:

1. Client Needs and Load Profile: The starting point is understanding the client's specific power requirements, critical loads, and tolerance for power interruptions. Analyze their historical energy consumption data to identify peak demands and typical outage durations. This will inform the sizing of both the battery and the generator.

2. System Sizing:

• Battery Sizing: Consider the critical loads that need immediate backup power and the desired runtime on battery alone. Factor in the depth of discharge (DoD) and the overall efficiency of the battery system. Oversizing the battery can increase costs significantly, while undersizing may not provide adequate backup.
• Generator Sizing: The generator should be sized to handle the total connected load, minus the capacity of the battery system to handle short-term surges. If the generator is being used incrementally to supplement battery charging and loads, you may want to consider both that maximum charge rate of the battery and the loads. Consider future load growth and ensure the generator can effectively recharge the battery bank after an outage. Avoid oversizing the generator, as this can lead to inefficient operation and increased fuel consumption.

3. Control and Communication: A sophisticated control system is essential for seamless integration. This system should be capable of:

• Automatic Transfer Switching (ATS): Detecting grid outages and automatically switching to battery power, and subsequently to generator power if the outage persists. Most hybrid inverters have this functionality integrated, and can minimize the need for an external ATS.
• Generator Start/Stop Control: Initiating the generator based on battery state-of-charge (SoC), load demand, or a pre-determined schedule. Again, Automatic Generator Start (AGS) is a key feature of most hybrid inverters.
• Load Management: Prioritizing critical loads during outages and potentially shedding non-essential loads to extend runtime.
• Communication and Monitoring: Providing real-time data on system performance, battery SoC, generator status, and potential faults. This allows for remote monitoring and proactive maintenance. Look for an inverter platform that has an intuitive monitoring interface and historical analytics.

4. Wiring and Interconnections: Proper wiring and adherence to electrical codes are paramount. Consider the following:

• Dedicated Circuits: Ensure critical loads are connected to circuits that can be backed up by both the battery and the generator.
• Battery Inverter Integration: The battery inverter plays a crucial role in converting DC power from the batteries to AC power for the loads. Ensure the inverter is compatible with the generator and the overall system. Look for inverters that have AGS, allowing for seamless interconnection between the generator, batteries and home loads.
• Generator Connection: Follow manufacturer guidelines for connecting the generator to the transfer switch and the electrical system.

5. Safety Considerations: Safety is non-negotiable. Implement robust safety measures, including:
Overcurrent Protection: Install appropriate fuses and circuit breakers to protect both the battery system and the generator.

• Overcurrent Protection: Install appropriate fuses and circuit breakers to protect both the battery system and the generator.
• Disconnect Switches: Provide readily accessible disconnect switches for both the battery and the generator for maintenance and emergency situations.
• Ventilation: Ensure adequate ventilation for both the battery room and the generator enclosure to prevent the buildup of flammable gases and heat.
• Grounding: Implement proper grounding according to electrical codes to prevent electrical shock hazards.
• Interlocks: Utilize mechanical or electrical interlocks to prevent the generator and the grid from being connected simultaneously. If using the AGS within the inverter, it will ensure that there is no chance of backfeeding to the solar array or grid.

6. Codes and Standards: Stay up-to-date with relevant national and local electrical codes and standards, including those related to battery storage systems (e.g., NFPA 855) and generator installations. Permitting requirements will vary depending on the jurisdiction. As an installer, researching and understanding the codes and submitting plans ahead of time can reduce challenges later when getting sign-off.

7. Maintenance and Monitoring: A comprehensive maintenance plan is crucial for the long-term reliability of the integrated system. This includes:

• Battery Maintenance: Regular inspection of battery terminals, connections, and battery health. Historical data from the inverter can assist to confirm original design and load assumptions and make adjustments to the system to meet the customers needs.
• Generator Maintenance: Following the manufacturer's recommended maintenance schedule, including oil changes, filter replacements, and regularly testing under load.
• System Testing: Periodically testing the entire integrated system under simulated outage conditions to ensure proper operation of the ATS, generator start-up, and load transfer.

Integration Architectures

Several integration architectures can be employed, depending on the specific application and client needs:

AC-Coupled System: The battery inverter and the generator are both connected to the AC side of the electrical system, typically after the main service disconnect. This is a common configuration for retrofitting battery storage into existing generator-backed systems. For battery systems, this allows existing grid connected solar to stay in place and couples it with a second hybrid inverter that enables battery charging from both the grid and solar. This secondary inverter also “grid forms”, allowing the existing array to re-energize and charge batteries.

DC-Coupled System: Involves connecting the battery system directly to a DC bus, which is then connected to an inverter that supplies AC power. This configuration is often used in conjunction with solar PV systems, where the batteries can store both solar energy and be charged by the generator through the inverter. DC-Coupled systems can be installed with or without solar and are more efficient and economical for new installations, leveraging the capabilities of the hybrid inverter to allow for grid interaction as well as generator use.

Opportunities for Electrical Contractors

The increasing demand for resilient and efficient power solutions presents significant opportunities for electrical contractors:

• Design and Installation: Offering expertise in designing and installing integrated battery and generator systems.
• System Upgrades: Retrofitting existing grid-tied solar and generator installations with battery storage to enhance performance and provide immediate backup, reducing generator runtime.
• Maintenance and Service: Providing ongoing maintenance, monitoring, and repair services for these complex systems.
• Consultation and Education: Educating clients on the benefits of integrated power solutions and helping them determine the best approach for their needs.

Conclusion

Integrating batteries and generators is no longer a niche application but a fundamental aspect of modern electrical installations. By understanding the principles of operation, key considerations, and available architectures, electrical contractors can position themselves as leaders in providing resilient, efficient, and sustainable power solutions for their clients. Embracing this evolving landscape will not only enhance service offerings but also contribute to a more reliable and sustainable energy future.
